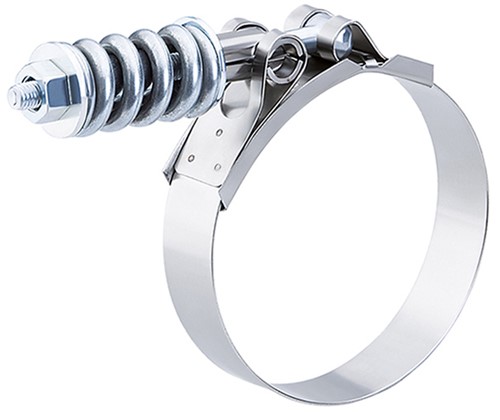

Breeze T-Bolt Spring Loaded Heavy Duty B9224-0338 3 3/8 - 3 11/16 Inch Range, 3/4" SS Band fullscreenView Full

HD Spring-Loaded T-Bolt B9224-0338 3 3/8"- 3 11/16" Range, 3/4" SS Band

Pricing:
Item #: B9224-0338
Availability: In Stock
Min Qty: 2
Qty:
-
+
Total = $12.15
Share:
Product Details
  • Used for industrial, marine and vehicle applications to compensate for thermal expansion of hose or fitting connections
  • B9224 - Heavy duty large spring with washers
  • Floating bridge liner
  • Per SAE standard J1508 Type "SLTB"
Specs
Band Material: 301 SS
Screw Material: Zinc Plated Carbon Steel
SAE: 80
Band Width: 3/4"
Min. Inches: 3 3/8
Max. Inches: 3 11/16
Min. mm: 86
Max. mm: 94
Torque Range: 150 in/lbs
Hex Screw: 1/2" Nut
Pack: 1
Unit: EA
Type: Constant Tension Clamps
Clamp Durability: High Pressure|Automotive|Fluxuating Temperatures|High Vibration|Large Diameter|Soft Hose|Industrial|Commercial|High Strength|Diesel|Pipes|Hose
Max. Inches (Decimal): 3.688
Min. Inches (Decimal): 3.375
Environment: Dry|Indoors
